Kit ventilator cu Termoswitch Sherco '14-'23

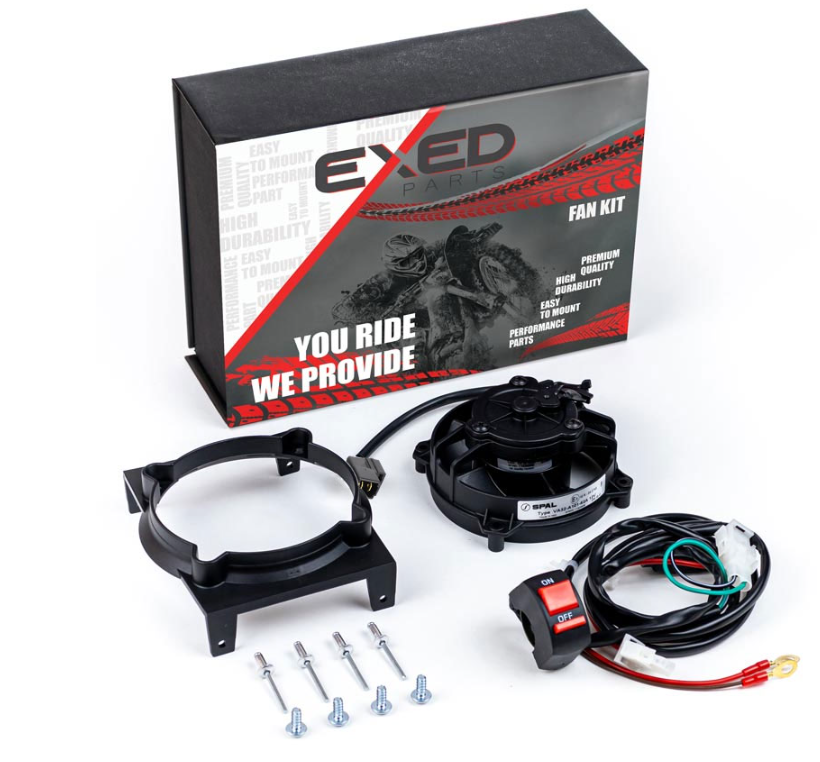

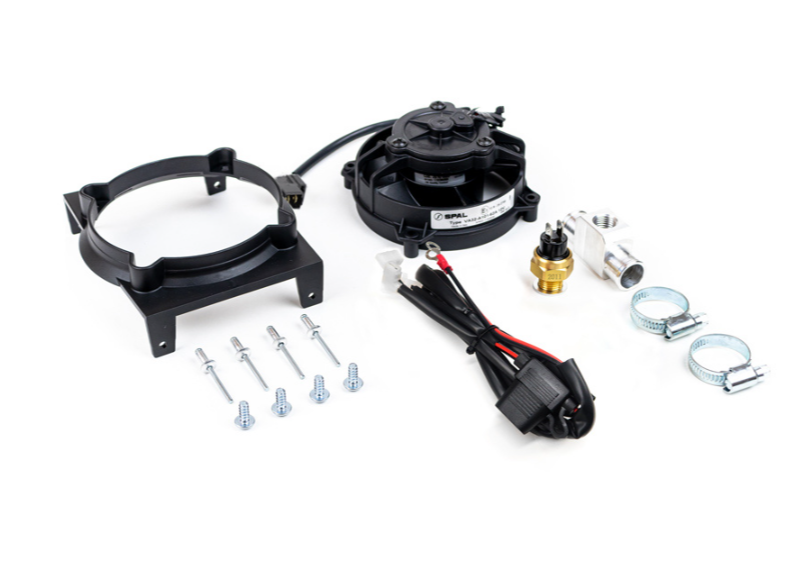

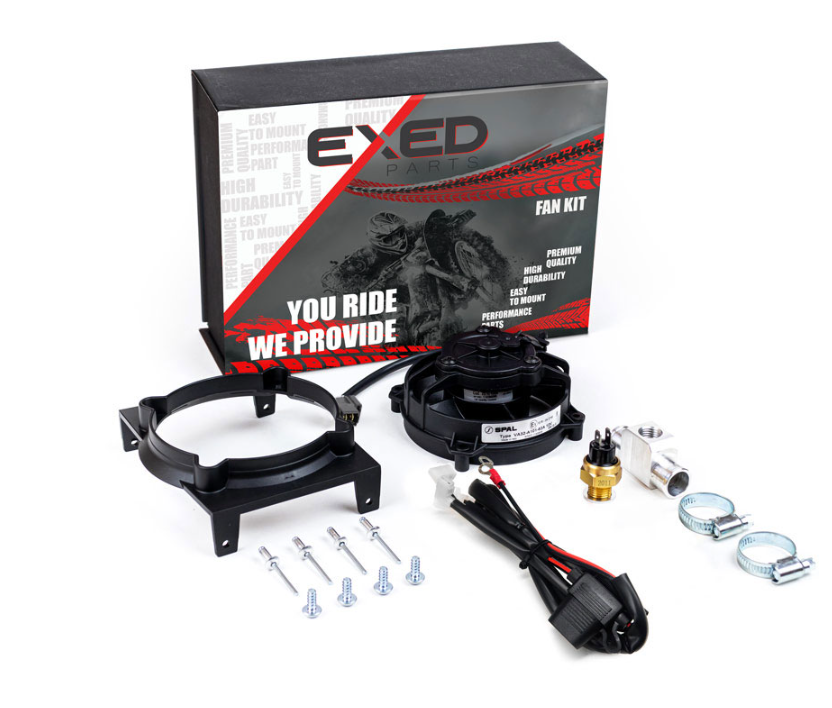

PACKAGE INCLUDES:

• 1 x Original SPAL 4 Inch Fan/Ventilator
• 1 x Radiator Mounting Bracket – high-grade plastic
• 1 x Thermoswitch Temperature Sensor, Aluminium Seal Ring 100°-93°C
• 1 x Thermoswitch Cable
• 1 x Fan Wiring Harness
• 4 x PT Screws for Fan
• 4 x Blind Rivets
• 2 x Hose Clamps
• 1 x Aluminium T
• 1 x Installation Instructions

TECHNICAL DATA:

• fan model that can be mounted in front of the cooler
• mounting diameter: 109mm
• wing diameter: 96mm
• mounting depth: 48mm
• voltage: 12V
• power input: 1,9 A
• air quantity: 210 m³/h
• weight: 0,4 kg

Compatible With

SHERCO with electric starter and battery, from model year 2014 – 2023
Sherco 250 300 450 SEF
Factory Sherco 250 300 SE
